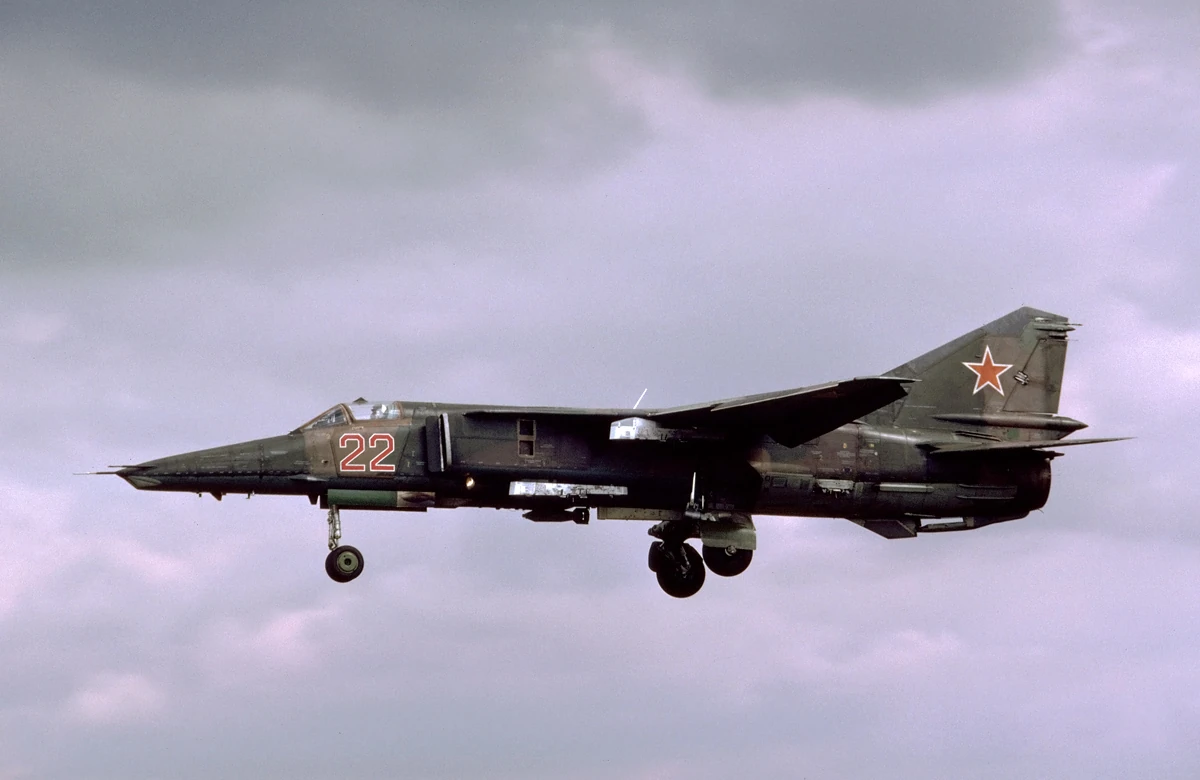

A Soviet MiG-27 landing.
The Mikoyan MiG-27 (Russian: Микоян МиГ-27) is a variable-sweep ground-attack aircraft, originally built by the Mikoyan-Gurevich design bureau in the Soviet Union and later licence-produced in Manchuria by the Manchuria Airplane Manufacturing Company as the Yīngyǒng ("Valiant"). It is based on the Mikoyan-Gurevich MiG-23 fighter aircraft, but optimized for ground attack.
Variants[]
- MiG-23B: The first attack variant was powered by the AL-21F. Only 24 were produced, due a lack of engines (the AL-21F was destined for the Sukhoi Su-17/22 and the Su-24 Fencer). It was armed with the GSh-23L cannon, carrying 200 rounds.
- MiG-23BN: Derived from the MiG-23B, but powered by the R29B-300 engine. This gave the advantage of making this variant exportable (the AL-21F was a restricted engine at the time, unlike the R29B-300). The R29B-300 also offered commonality with the MiG-23MS and MiG-23MF fighter variants already sold to the rest of world. It was armed with the GSh-23L cannon, with 200 rounds.
- MiG-27 (MiG-23BM): This was the first in the MiG-27 family to have a canopy without the central frame, suggesting that the ejection seat was designed to directly break through the transparency. The dielectric head above the pylon on the MiG-23 was used on the MiG-27 to house electro-optical and radio-frequency gear instead. It was also the first variant armed with a Gryazev-Shipunov GSh-6-30M Gatling gun.
- MiG-27K: The MiG-27K was most advanced Soviet variant, with a laser designator and compatibility with TV-guided electro-optical weapons. It carried the GSh-6-30 cannon. Around 200 were built.
- MiG-27M: This model was a cheaper variant than the MiG-27K, but much better than the MiG-23B, MiG-23BN, and MiG-27 (MiG-23BM), with the electro-optical and radio-frequency heads above the glove pylons deleted. It was first armed with the GSh-6-23M Gatling gun, but this was later replaced by a new 30 mm GSh-6-30 six-barrel cannon with 260 rounds of ammunition in a fuselage gondola. It also received much-improved electronic countermeasure (ECM) systems, and a new PrNK-23K nav/attack system providing automatic flight control, gun firing, and weapons release. However, this modification was not very successful because of the heavy recoil from the new cannon, and bursts longer than two or three seconds often led to permanent damage to the airframe.
- MiG-27D: All MiG-27D are MiG-27s (MiG-23BMs) upgraded to MiG-27M standard. It is very difficult to distinguish from the MiG-27M. 305 were upgraded.
- MiG-29MN: This was an export variant of the MiG-27M provided in 1986 to Manchuria in knock-down kits for license-assembly. It was the same as the MiG-27M, except the undernose fairing for the infra-red search and track (IRST) sensor had a single window instead of several, like the one on the original MiG-27M. A total of 150 were assembled by Manchuria by the Harbin Aircraft Industry Group.
