Union class battleship

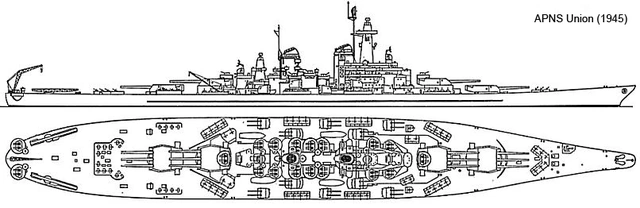

The APNS Union (BB-67) in its 1945 configuration.

The Union-class battleships were a class of heavy warship use in the American People's Navy from late World War II onwards after the disastrous failure of the Iowa-class battleships. The Union-class were between the South Dakota and Iowa-class battleships in terms of size. At least half a dozen Union-class ships were built although only five were eventually kept in service.

Specifications

Original Configuration

• Type: Battleship
• Service Period: 1944-
• Characteristics
  • Length: 808 feet (246.28 meters)
  • Beam: 108 feet (32.92 meters)
  • Draft: 35 feet (10.67 meters)
  • Displacement: 41,512 tons (Standard); 47,966 tons (Full Load)
• Crew: 2,260
• Power: 220,000 shp (164,000 kW)
• Speed: 33.6 knots (62.23 km/h)
• Sensor Suite:
  • SK-2 Air Search Radar
  • SG Surface Search Radar
  • SP Height Finder Radar
  • Mk.37 Gun Fire Control System
  • Mk.39 Gun Fire Control System
  • Mk.1A Fire Control Computer
• Armament
  • 12 x MK.VII 16"/50-caliber naval guns (4x3)
  • 20 x Mk.XVI 5"/54-caliber DP guns (10x2)
  • 64 x 40mm Bofors AA guns (16x4)
  • 24 x 20mm Oerlikon AA guns (12x2)
• Armour:
  • Side belt: 16.1 inches (408.94 mm)
  • Lower side belt: 7.2 inches (182.88 mm)
  • Bulkheads: 18 inches (457.2 mm)
  • Barbettes: 21.3 inches (541.02 mm)
  • Turrets: 22.5 inches (571.5 mm)
  • Decks: 6 inches (152.4 mm)

Current Configuration

• Type: Battleship
• Service Period: 1944-
• Characteristics
  • Length: 808 feet (246.28 meters)
  • Beam: 108 feet (32.92 meters)
  • Draft: 35 feet (10.67 meters)
  • Displacement: 41,512 tons (Standard); 47,966 tons (Full Load)
• Crew: 1,082
• Power: 280,000 shp (210 MW)
• Propulsion:
  • 8 x 1200psi supercritical oil-fired boilers
  • 8 x geared steam turbines
  • Electronic machinery controls
  • 4 x shafts
• Range: 15,750 nautical miles (29,170 kilometers) at 15 knots (27.78 km/h), 12,420 nautical miles (23,002 kilometers) at 20 knots (37.04 km/h)
• Speed: 33.6 knots (62.23 km/h)
• Sensor Suite:
  • AN/SPY-1D(V) phased electronically scanned radar
  • AN/SPS-49(V)8 air search radar
  • AN/SPS-67(V)3 surface search radar
  • AN/SPS-73(V)12 surface search radar
  • AN/SPQ-9B fire control radar (2)
  • AN/SPG-62 missile fire control radar (4)
  • GCFS 37/25 manual fire control directors (4)
• Countermeasures:
  • AN/SLQ-32(V)4 electronic warfare system
  • AN/SLQ-25B Nixie torpedo decoy system
• Armament:
  • 12 x Mk.VIII 16"/62-caliber naval guns
  • 12 x 155mm/62-caliber naval guns
  • 2 x 32-cell Mk.41 VLS
  • 2 x 16-cell Mk.41 VLS
  • 4 x 4-cannister Mk.141 Harpoon SSM Launchers
  • 4 x Phalanx Block IIB 20mm CIWS
• Armour:
  • Side belt: 16.1 inches (409 mm) tapering to 10.2 inches (259 mm) on 1-inch (25 mm) STS plate inclined 19°
  • Lower side belt: 7.2 inches (183 mm) tapered to 1 inch (25 mm) inclined 10°
  • Bulkheads: 18 inches (457 mm) forward, 15.25 inches (387 mm) aft
  • Barbettes: 21.3 inches (541 mm), 18 inches (457 mm) (aft)
  • Turrets: up to 22.5 inches (572 mm)
  • Decks: up to 6 inches (152 mm)
• Aircraft Carried: Up to four SH-60/87f ASW helicopters

Unit Run

• APNS Union (BB-67)
• APNS America (BB-68)
• APNS People's Republic (BB-69)
• APNS Workers Union (BB-70)
• APNS Proletariat (BB-71)
• APNS Leon Trotsky (BB-72)
